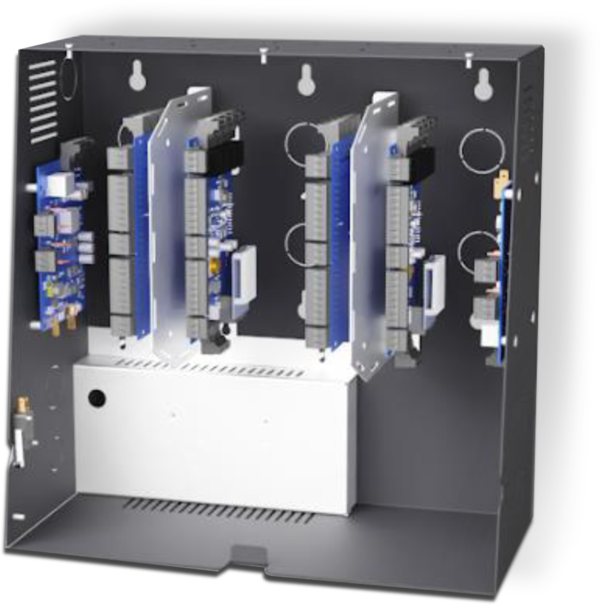

8DXLPL
INTEGRATED POWER FOR ALL THE PANELS, READERS AND LOCKS.
8 DOOR PANEL
INTEGRATED POWER FOR ALL THE PANELS, READERS AND LOCKS.
Features
- Contains two 4 door modules in housing
- Each module functions as a Server, Expansion panel or Elevator
- Integrated 150-Watt power supply for complete system power
- Wedge – Open enclosure design provides easy access to wiring
- Lid Removal disconnect pins for fast access to hardware
- Tie downs support dual sided strapping for wire management
- ETL – UL 294 (Pending)
- 5-year hardware warrant
LOCK POWER
- 2 Power boards Located on Left and Right sides
- IEC Cord 5’ Included
- 8 Auto Resetting Fused Outputs
- Isolated power for readers & controller 12VDC or 350ml for 24 VDC
- Selectable 12 or 24 VDC per output
- LED status for voltage, power short and fire input triggered
- Fire Drop Input
- Power supervision – log and action
- Battery Backup (Battery not included)
- Battery provides backup for 12- and 24-volt outputs.
USER MANUAL
QUICKSTART GUIDE
IP FINDER
FLYER
HIGH RES PIC
WIRE DIAGRAM
APPLICATION NOTE
NETWORK CONFIG GUIDE
Smart and Powerful features
Compact, but Impact.
TECHNICAL SPECIFICATIONS
| Model | 8DXLPL |
| Operating System | Embedded Linux |
| Transactions | 60 per second |
| Power Requirements | 115VAC | Standard Wall plug in outlet |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Enclosure Size (W x H x D) | 14.75” x 14.75” x 7.00” | (375mm x 375mm x 178mm) |
| Integrated Power Supply | 150 Watt – IEC Cord | Controller, Readers & 12V and 24V DC for Door Locks |
| Selectable Lock out put power | 12 VDC 700mA, 24 VDC 350mA |
| Battery Backup | Controllers, Readers, & Door Lock |
| Recommended Battery Type (battery is not included) | 12V, 7AH, Sealed Lead Acid with 0.187 inch terminals |
| RJ485/Ethernet | Requires two ( 2 ) TCIP Connections and IP addresses / 1 per module |
| Readers (Wiegand) | 16 Readers, 8 In & 8 Out Reader for Each Door |
| Reader Power | 300mA @ 12V Max per Reader 1000mA @ 12V Max per 4 door panel |
| Reader Power Request to Exit (REX) Input | 8 Total, One for Each Door |
| Door Position (status) Input | 8 Total, One for Each Door |
| Auxiliary Input | 8 Total, General Purpose |
| Tamper Digital Input | Yes |
| Power Fault Digital Input | Yes |
| Door Lock Output | 8 Form C Relay, 24V @ 2.0A |
| Auxiliary Output 1 | 8 Form C Relay, 24V @ 2.0A |
