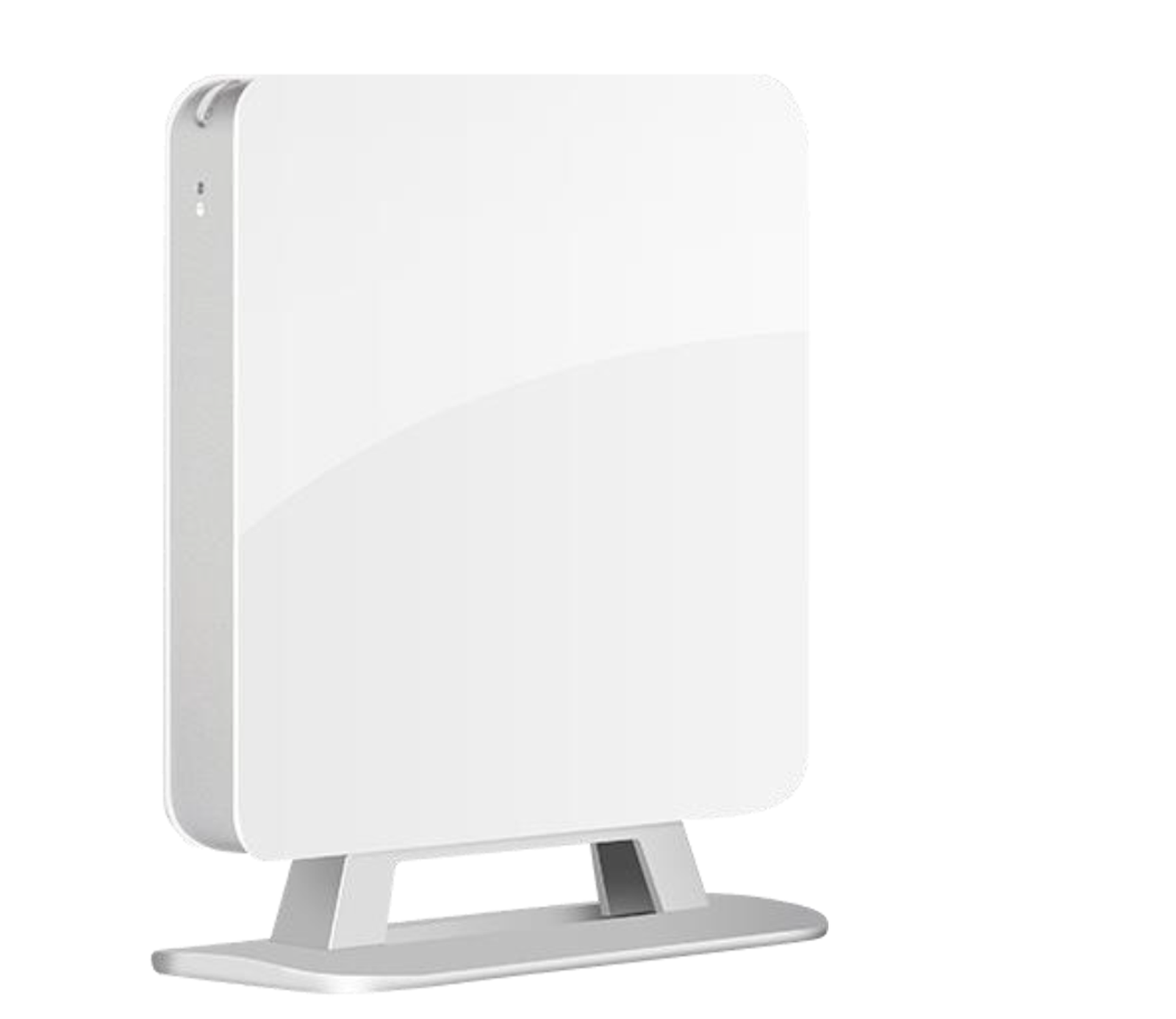

ACS Mini PC
PART # CORPPLUSS
SDOC-5017
FEATURES PER SYSTEM
- Server Level Mini Machine
- Out of the box ready, browser managed
- Linux 64bit operating system
- Apache Web server – Up to 25 concurrent administrators
- Optional Data back up FTP and USB
- Mobile Manager Enabled
- Remote Management Connector Enabled
- 3-year hardware warranty
USER MANUAL
QUICKSTART GUIDE
IP FINDER
FLYER
HIGH RES PIC
WIRE DIAGRAM
APPLICATION NOTE
NETWORK CONFIG GUIDE
Smart and Powerful features
Compact, but Impact.
TECHNICAL SPECIFICATIONS
| Model | CorpPlusS |
| Processor | Intel 4 Core Processor |
| Memory | 4GB DDR3 & 64GB Solid State Drive |
| Operating System | Linux / 64 Bit |
| Transactions | > 100 per second |
| System Power Requirements | 12VDC @ 4Amp |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Enclosure Size (W x H x D) | 7.28 x 7.28 x 0.47in (185 x 185 x 25mm) |
| Power Supply | Plug in included |
| Battery Backup | N/A |
| Recommended Battery Backup (not included) | UPS |
| Default Door and Client Count | 128, 128 |
| CorpPlusU 256 | Software License for 256 doors and 128 clients |
| CorpPlusU 256 | Upgrade Software License from 256 to 360 doors and |
